HCP HDG Series - Agitator Submersible Pump

These pumps feature a high chrome impeller and an agitator, which helps to “stir-up” settled sediment which is then transported by the pumped water. This results in a cleaner sumps.

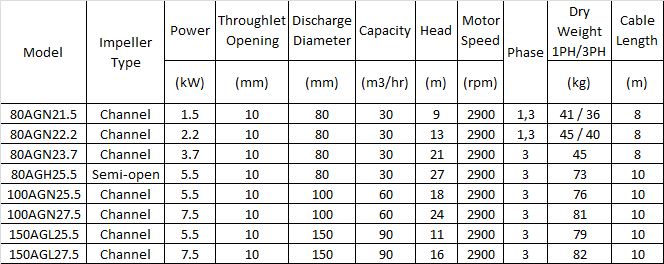

• Available from 1.5kW up to 7.5kW, single phase 230V and three phase 415V.
• Pumps feature a double, back to back mechanical seal (Inner = Carbon vs. Ceramic, Outer = Silicone carbide vs. Silicone carbide) The seal is located in the oil housing and runs independently from the pumped product. It is thus not dependant on product for cooling or lubrication
• Pumps are fitted with a motor protector “auto cut” thermal device. This protects the motor from burning due to overloading etc.
• Light weight and durable. Handles settled sediment with great ease!

FEATURES

Design for civil engineering, light weight for easy portability, double outer casing water cooling motor make it possible to run the pump to low water level.
Best waterproof structure, automatic rest motor protector and double mechanical seal made of silicon carbide. Durable and leakproof.
Compact, strong design and easy operation in any place.
Impeller made of high chrome alloy (HCR) steel with a hardness of 55-60 Re. Harden and abrasion resistant.
Equipped with a cast iron (FCD) agitator to create powerful stirring and pumping action for slurry.

APPLICATIONS

Civil engineering, dewatering for tunnel engineering also for manhole sewer.
Dewatering fluid contain solid sediment.
Mobile use for contractors, installers and industry.
